C-Elysée

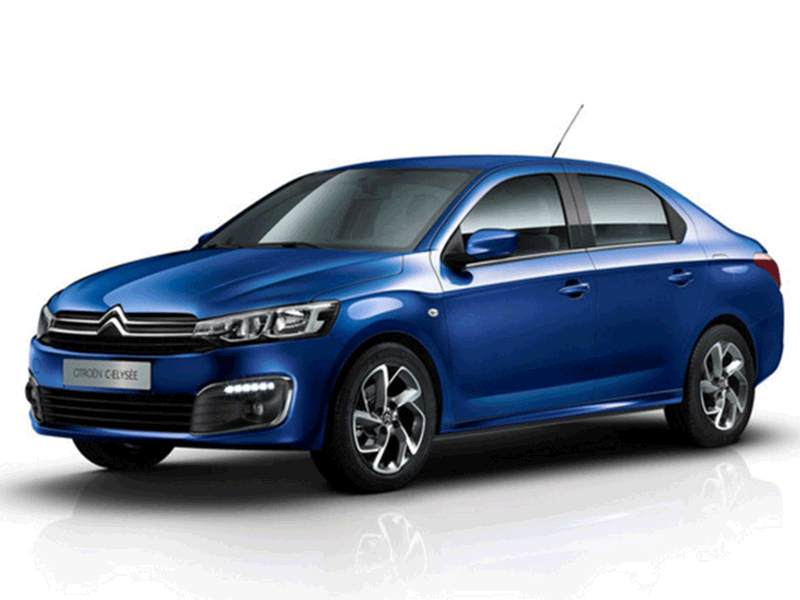

Citroën C-Elysée: A modern and distinctive design for a versatile sedan car
Technical Specifications
ENGINE
- Displacement (cc) : 1199 or 1587
- Fuel type : Petrol
- Max power HP/rpm : 82/5500 or 115/6050
- Max torque Nm : 110/3000 or 150/4000
DIMENSIONS
- Dimensions (Lxwxh) in mm : 4427*1748*1466
- Ground clearance (mm) : 139 or 138
TRANSMISSION
- Gearbox : Manual, Automatic
- Transmission : Front 2 WD
WEIGHT/CAPACITIES
- Curb weight (kg) : 980 or 1090
- Fuel tank capacity (L) : 50
- Number of seats : 5
Models available

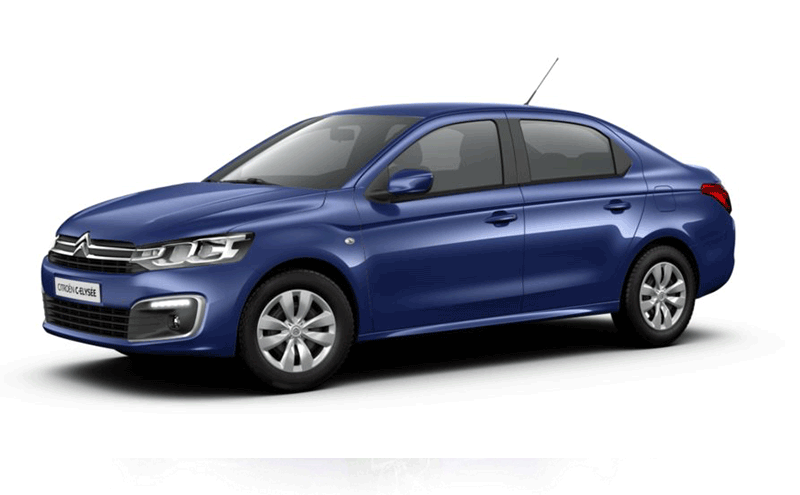

Séduction MT 1,2L
Air conditionning
Central door locking
Connections
Power windows
Wheels
Airbag passenger deactivation
Airbags
ABS
Fog lamps
C-Elysée Séduction MT 1,2L
Technical Specifications
ENGINE |
|
| Displacement (cc) | 1199 |
| Engine Type | Cylinder in line |
| Fuel System | Direct injection |
| Fuel type | Petrol |
| Horse power Hp | 7 |
| Max power HP/rpm | 82/5500 |
| Max torque Nm | 110/3000 |
| Number of cylinders | 3 |
| Valves/cylinder | 4 |
 BODY |
|
| Body style | Sedan |
| Chassis | Full unit body |
| Number of doors | 4 doors |
DIMENSIONS |
|
| Dimensions (Lxwxh) in mm | 4427*1748*1466 |
| Front tread (mm) | 1501 |
| Ground clearance (mm) | 139 |
| Rear tread (mm) | 1478 |
| Turning radius (m) | 5.35 |
| Wheelbase (mm) | 2652 |
TRANSMISSION |
|
| Gearbox | Manual |
| Transmission | Front 2 WD |
WEIGHT/CAPACITIES |
|
| Curb weight (kg) | 980 |
| Fuel tank capacity (L) | 50 |
| Gross vehicle weight (kg) | 1459 |
| Trunk volume (L) | 506 (norme VDA) |
 BRAKES |
|
| Front brake | Discs |
| Parking brake | Manual |
| Rear brake | Drums |
 SUSPENSIONS |
|
| Front suspension | Coil type |
| Rear suspension | Coil type |
 TYRES |
|
| Tyre dimension | 185/65R15 |
Equipments
INTERIOR & COMFORT |
|
| 2nd row seats | Folding 40/60 |
| Adjustable steering wheel | Height adjustable |
| Air conditionning | Manual |
| Central door locking | With PLIP |
| Central door locking while driving | Yes |
| Connections | Aux, USB |
| Driver seat | Height adjustable |
| Handsfree kit | Yes |
| Loud speakers | 4 |
| Number of seats | 5 |
| Plug 12V | 1 |
| Power Steering | Yes |
| Power windows | Rear, Front |
| Radio | Radio CD / MP3 |
| Rear windows locking | |
| Room lamps | Yes |
| Steering wheel audio control | Yes |
| Sun visor | Yes |
| Trip computer | |
| Trunk carpet | |
| Upholstery | Fabric |
EXTERIOR |
|
| Folding side mirrors | Manuals |
| Front bumpers | Body colour |
| Rear bumpers | Body colour |
| Wheels | Aluminium |
PASSIVE SAFETY |
|
| Airbag passenger deactivation | |
| Airbags | Driver, Passenger |
| Headrests | Rear, Front |
| Protection plate | Engine |
| Retractable steering wheel | Yes |
| Seatbelts - 2nd row | 3 x 3 points |
| Seatbelts - Front | 2 x 3 points |
| Spare wheel | Steel |
ACTIVE SAFETY |
|
| ABS | Yes |
| Adaptative stop lights | |
| Child lock | Yes |
| Demister | Windshield, Rear windows |
| Fog lamps | Rear |
| Rough road package | |
| Side turn lamp | Yes |

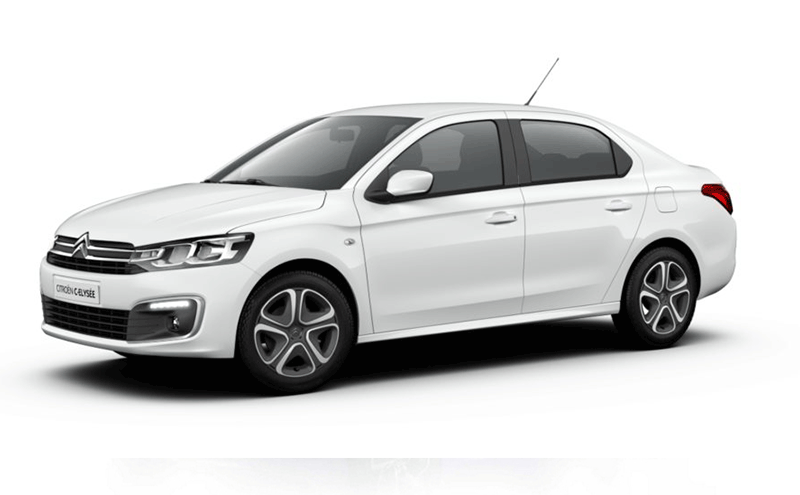

Exclusive AT 1,6L
Central door locking
Connections
Parking sensor
Power windows
Wheels
Airbag passenger deactivation
Airbags
ABS
Fog lamps
C-Elysée Exclusive AT 1,6L
Technical Specifications
ENGINE |
|
| Displacement (cc) | 1587 |
| Engine Type | Cylinder in line |
| Fuel System | multipoint injection |
| Fuel type | Petrol |
| Horse power Hp | 9 |
| Max power HP/rpm | 115/6050 |
| Max torque Nm | 150/4000 |
| Number of cylinders | 4 |
| Valves/cylinder | 4 |
BODY |
|
| Body style | Sedan |
| Chassis | Full unit body |
| Number of doors | 4 doors |
DIMENSIONS |
|
| Dimensions (Lxwxh) in mm | 4427*1748*1466 |
| Front tread (mm) | 1501 |
| Ground clearance (mm) | 138 |
| Rear tread (mm) | 1478 |
| Turning radius (m) | 5.35 |
| Wheelbase (mm) | 2652 |
TRANSMISSION |
|
| Gearbox | Automatic |
| Transmission | Front 2 WD |
WEIGHT/CAPACITIES |
|
| Curb weight (kg) | 1090 |
| Fuel tank capacity (L) | 50 |
| Gross vehicle weight (kg) | 1559 |
| Trunk volume (L) | 506 (norme VDA) |
BRAKES |
|
| Front brake | Discs |
| Parking brake | Manual |
| Rear brake | Drums |
SUSPENSIONS |
|
| Front suspension | Coil type |
| Rear suspension | Coil type |
TYRES |
|
| Tyre dimension | 195/55R16 |
Equipments
INTERIOR & COMFORT |
|
| 2nd row seats | Folding 40/60 |
| Adjustable steering wheel | Height adjustable |
| Air conditionning | Automatic |
| Central door locking | With PLIP |
| Connections | USB, Aux |
| Driver seat | Height adjustable |
| Handsfree kit | Yes |
| Loud speakers | 4 |
| Number of seats | 5 |
| Parking sensor | Rear |
| Plug 12V | 1 |
| Power Steering | Yes |
| Power windows | Front, Rear |
| Radio | Radio CD / MP3 |
| Rear windows locking | |
| Room lamps | Yes |
| Steering wheel | Leather |
| Steering wheel audio control | Yes |
| Sun visor | Yes |
| Trip computer | |
| Trunk carpet | |
| Upholstery | Fabric |
EXTERIOR |
|
| Adjustable side mirrors | Electrics |
| Folding side mirrors | Manuals |
| Front bumpers | Body colour |
| Rear bumpers | Body colour |
| Wheels | Aluminium |
PASSIVE SAFETY |
|
| Airbag passenger deactivation | |
| Airbags | Driver, Passenger |
| Headrests | Front, Rear |
| Protection plate | Engine |
| Retractable steering wheel | Yes |
| Seatbelts - 2nd row | 3 x 3 points |
| Seatbelts - Front | 2 x 3 points |
| Spare wheel | Steel |
ACTIVE SAFETY |
|
| ABS | Yes |
| Child lock | Yes |
| Demister | Rear windows, Windshield |
| Fog lamps | Rear |
| Side turn lamp | Yes |

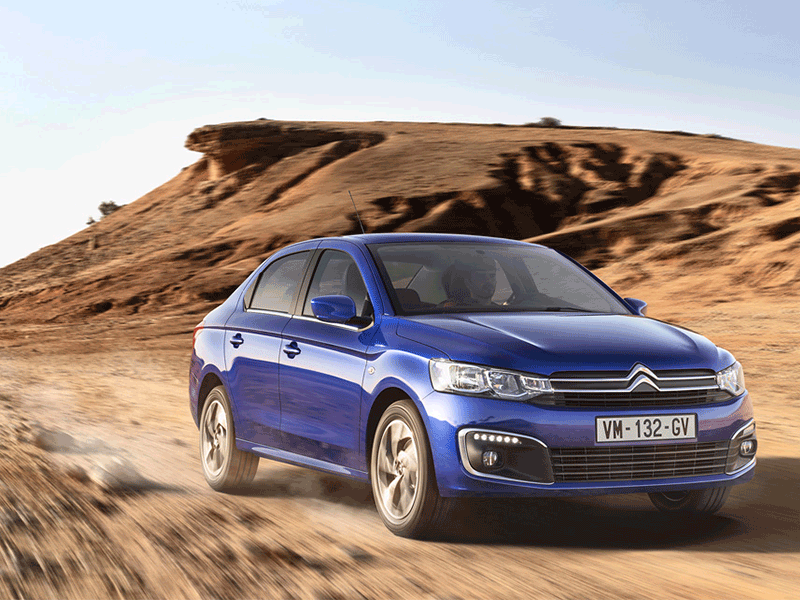

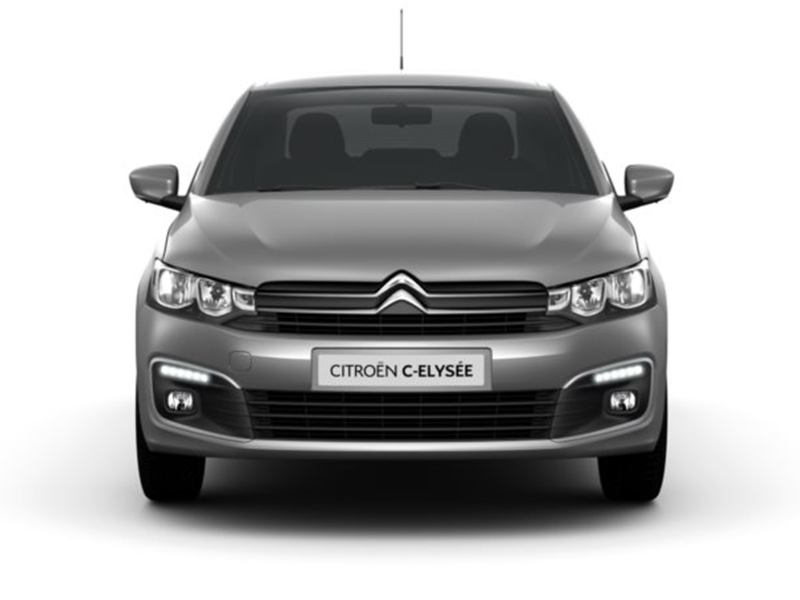

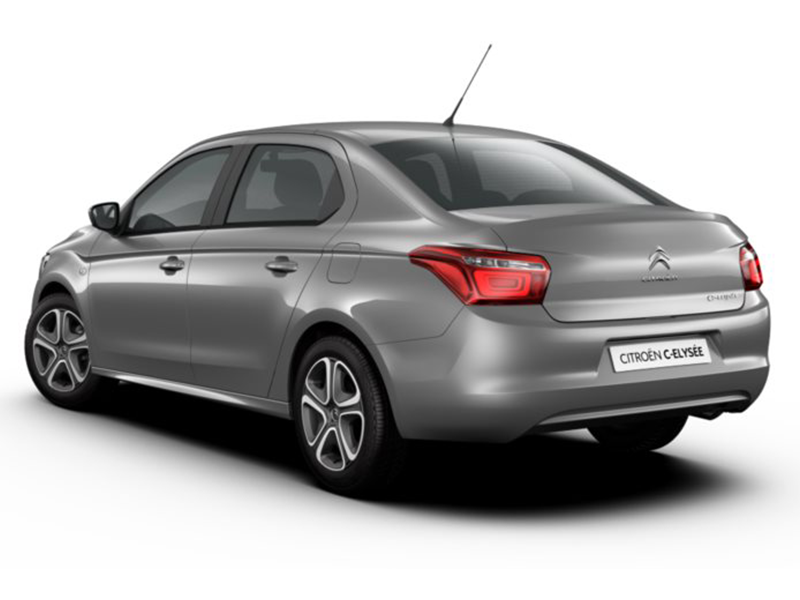

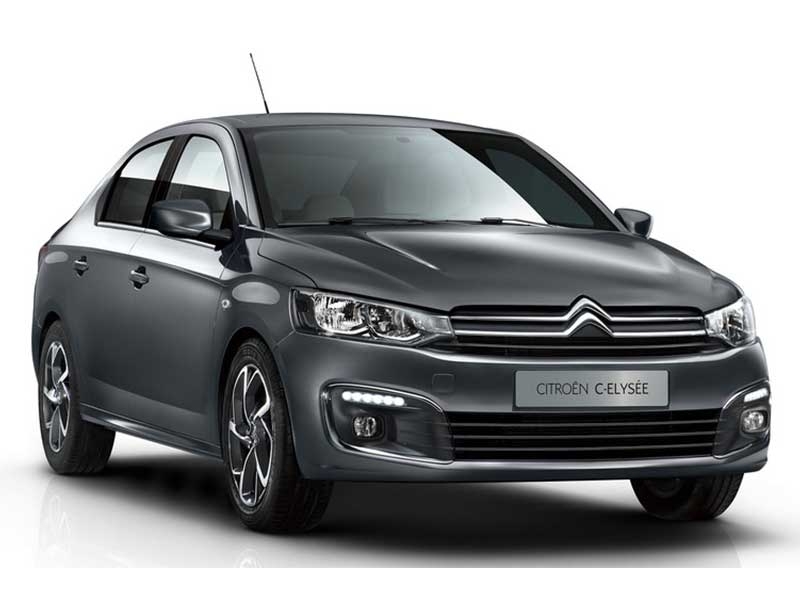

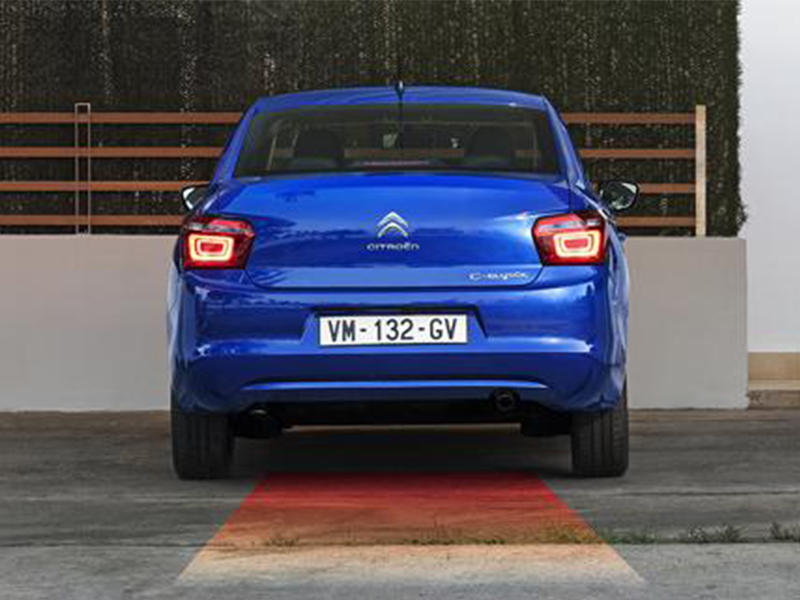

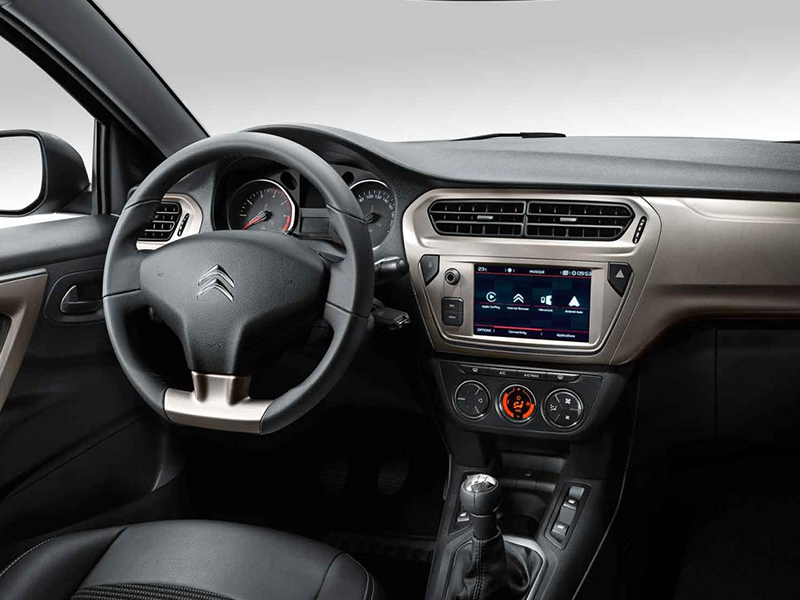

Gallery
Non-contractual images
